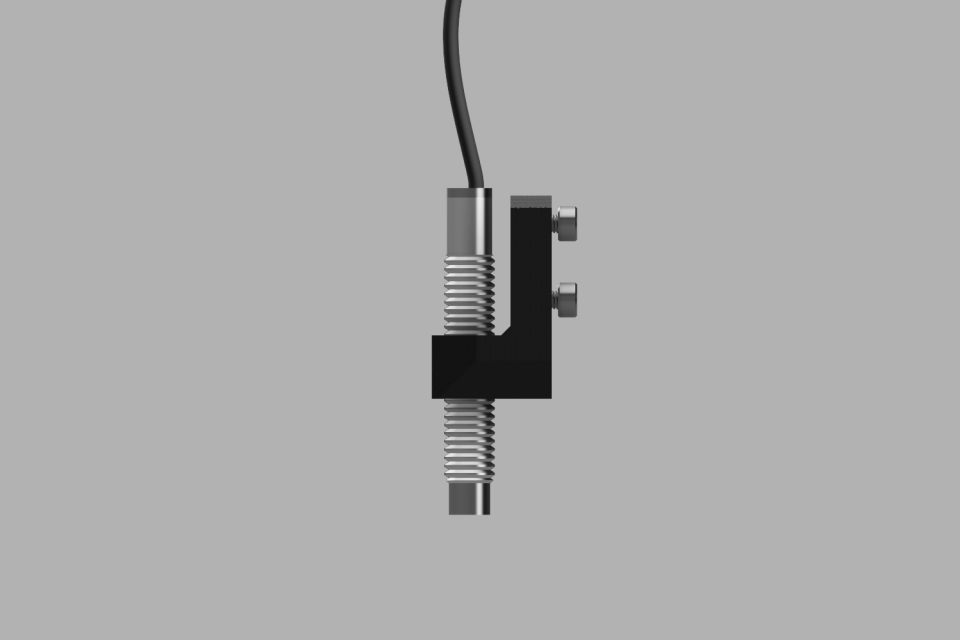

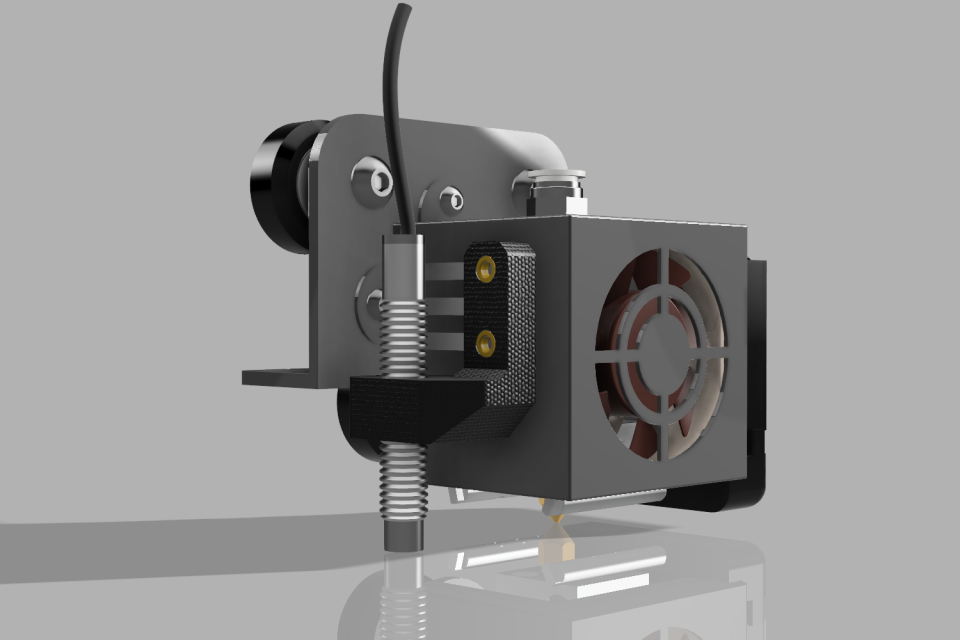

Creality Ender 3 Auto Level Mount for M8 Pinda Probe

Description.



Just a very simple mount with a threaded M8x1 through hole to mount M8 Inductive probes or the Prusa PINDA sensor.

I have printed and tested the thread and all seems Ok just need to print at a lower layer height e.g 160 micron or lower. I haven’t tried mounting it yet as i still have to mount my new magnetic heated beds and flexplates.

Probe offset in X is -44mm, in Y i would try to align it exactly with the nozzle.

Materials.



Pinda v2 Probe – Aliexpress
2 x M3x6mm Cap Head Bolts
2 x M3 Brass Inserts

And That’s it.

Print Settings.

Printed in Sunlu Filament Black PETG purchased from Amazon.

Creality Ender 3 Auto Level Mount for M8 Pinda ProbeCreality Ender 3 Auto Level Mount for M8 Pinda Probe

Print Temp : 230°C
Bed Temp : 75°C
Print Speed : 50mm/s
Top Layers : 5
Bottom Layers : 4
Perimeters : 3
Infill : 60%

Printed on PEI.

Download Links.



Thingiverse – thing:3491181

MyMiniFactory – 3d-print-99783

Copyright Licence.



Creality Ender 3 Auto Level Mount for M8 Pinda Probecopyright-bycopyright-nccopyright-sa







This design has a [Creative Commons Attribution Non-Commercial Share Alike](Creative Commons Attribution Non-Commercial Share Alike) license, which means that you can print, remix, and use this model with design credit to bobblejot, but if you want to sell something then you should ask first, at [email protected]
